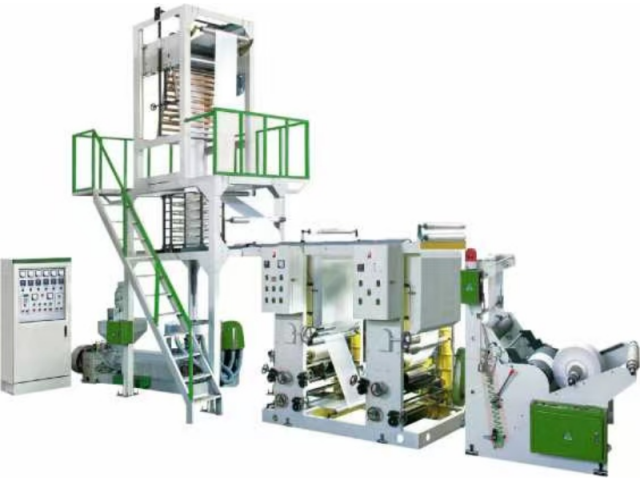

LC-700 blown film integrated printing unit

LC-700 blown film integrated printing unit

The machine body is a square steel frame, with a traction motor equipped with frequency conversion. It features friction single winding, lifting, etc. Suitable for blowing high and low pressure polyethylene industrial films and agricultural mulch films.

Overview:

The machine body is a square steel frame, with a traction motor equipped with frequency conversion. It features friction single winding, lifting, etc. Suitable for blowing high and low pressure polyethylene industrial films and agricultural mulch films. Continuous printing on various plastic films, fabrics, thin leather, and packaging products, with single and double-sided printing completed in one pass. A 360-degree registration device ensures precise printing without affecting film stretching. Color matching can be adjusted at any time. No infrared drying device; drying speed is 50%/min, producing clear and beautiful images. (The gravure printing machine can also be replaced with a flexographic printing machine.)

Technical Parameters:

Model

Model

SJ-P45

SJ-P50

SJ-P55

SJ-P65

General materials

Suitable material

LDPE,HD

PE. LLDPE

Product width

Film Width

100-500mm

300-600mm

400-800mm

600-1200mm

Product thickness

Film Thickness        HD

0.009-0.05mm

0.009-0.05mm

0.009-0.15mm

0.009-0.15mm

LD

0.02-0.15mm

0.02-0.15mm

0.03-0.15mm

0.03-0.15mm

Maximum output

Max. Extrusion Output HD

35kg/hr

40kg/hr

50kg/hr

55kg/hr

LD

40kg/hr

50kg/hr

60kg/hr

70kg/hr

Squeeze machine

Extruder









Screw diameter

Screw Diameter

φ45

φ50

φ55

φ65

Screw length-to-diameter ratio

Screw L/D Length

28:1/30:1

28:1/30:1

28:1/30:1

28:1/30:1

Screw materials

Screw Material

Sacm-645/38 Crmoala

Barrel material

Cylinder Material

Sacm-645/38 Crmoala

Barrel cooling

Cylinder Cooling

180Wx2

250Wx2

370Wx2

550Wx2

Main unit power

Main Motor

11kw

15kw

18.5kw

22kw

Barrel temperature control

Temperature Control

3

3

3

4

Average power consumption

Average Power consume

10kw

12kw

18kw

30kw

Die head

Type of Die









Mold opening

The Size HD

Φ60/80

Φ60/100

$80/100

Φ120/150

LD

φ100/120

Φ120/150

Φ180/200

Φ220/250

Temperature control

Temperature Control

3

3

3

3

Wind ring

Air Ring

1

1

1

1

Fans

Air B10wer

1.5kw

2.2kw

3kw

4kw

Central stabilizer

Center steady stick

1

1

1

1

Pickup device

Take-up unit









Pulling Cheng Kuan

Roller Width

650mm

700mm

900mm

1300mm

Effectively draws in membrane width

Effective Width

500mm

600mm

800mm

1200mm

Adjustable lifting distance

Height adjustable

800mm

800mm

800mm



Extraction speed

Take-up Speed

10-100m/min

10-100m/min

10-100m/min

10-80m/min

Draw motor power

Take-up Motor

0.75kw

1.1kw

1.1kw

1.5kw

Winding device

Winding Unit









Surface friction type

Type

Surface friction type

Winding power

Winding Motor

10N.m

10N.m

10N.m

16N.m

Winding speed

Winding Speed

10-100m/min

10-100m/min

10-80m/min

10-80m/min

Power supply

Voltage

380V.50H Z 3PHASE

380V,50H Z 3PHASE

380V.50H Z 3PHASE

380V,50H Z 3PHASE

External dimensions

Outline Dimension(LxWxH)

5.0x2.0x4.1(m)

5.0x2.1x4.5(m)

5.5x2.3x5.2(m)

5.8x2.6x6.3(m)

Print length

Pritning Length(mm)

250-1000

250-1000

250-1000

250-1000

Registration accuracy

Precision of co10r Printing (mm)

Horizontal 0.2, Vertical 0.2

Horizontal 0.2, Vertical 0.2

Horizontal 0.2, Vertical 0.2

Horizontal 0.2, Vertical 0.2
